Mini Synthesizer




• This Project generates an rf carrier based on a pll
• with an MC12095 and MC12080 or MB 501
• locked on a 10.000 MHz reference



Mini Synthesizer



This project mayst be used as an standalone (fixed) LO. With these three prescalers, the following multiplication factors are possible :

NONE, N = 1 102040646580128129
MC12095, N = 2 204080128130160256258
MC12095, N = 4 4080160256260320512516

It is recommended to choose a ROS-oscillator from MiniCircuits, having a supply voltage of 5 V and a 5 V tuning voltage.




Software / Hardware Description




As we need a 400 MHz carrier, we have chosen the ROS-425-319+ from MiniCircuits. According to the datasheet, a tuning voltage of approx. 2.0 V should be necessary. We therfore choose the first prescaler to be N1 = 2 and using a MC12080 as a second prescaler with N2 = 20 mayst serve as a suiteable device. As we use a 10.0 MHz as a reference, this is also the phase comparator frequency. The Lowpass filter should therefore be calculated for a maximum frequency of 1 MHz. The used PLL circuit is a 74HCT9046. It has as typical charge pump curent of ± 1.06 mA (Rbias=40kΩ). The loop filter was calculated with this tool.




Downloads

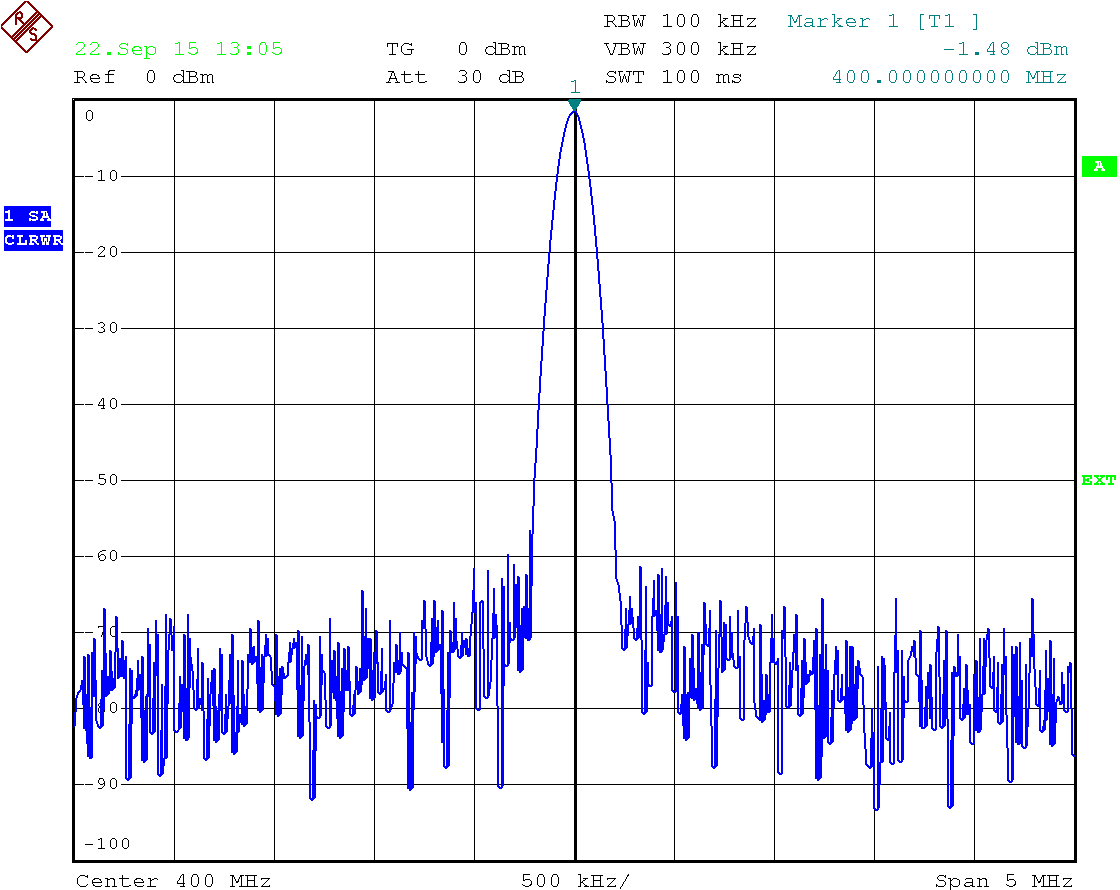

Spectrum 400 MHz ( 10 MHz x 40 ), ROS-425-319+




Spectrum

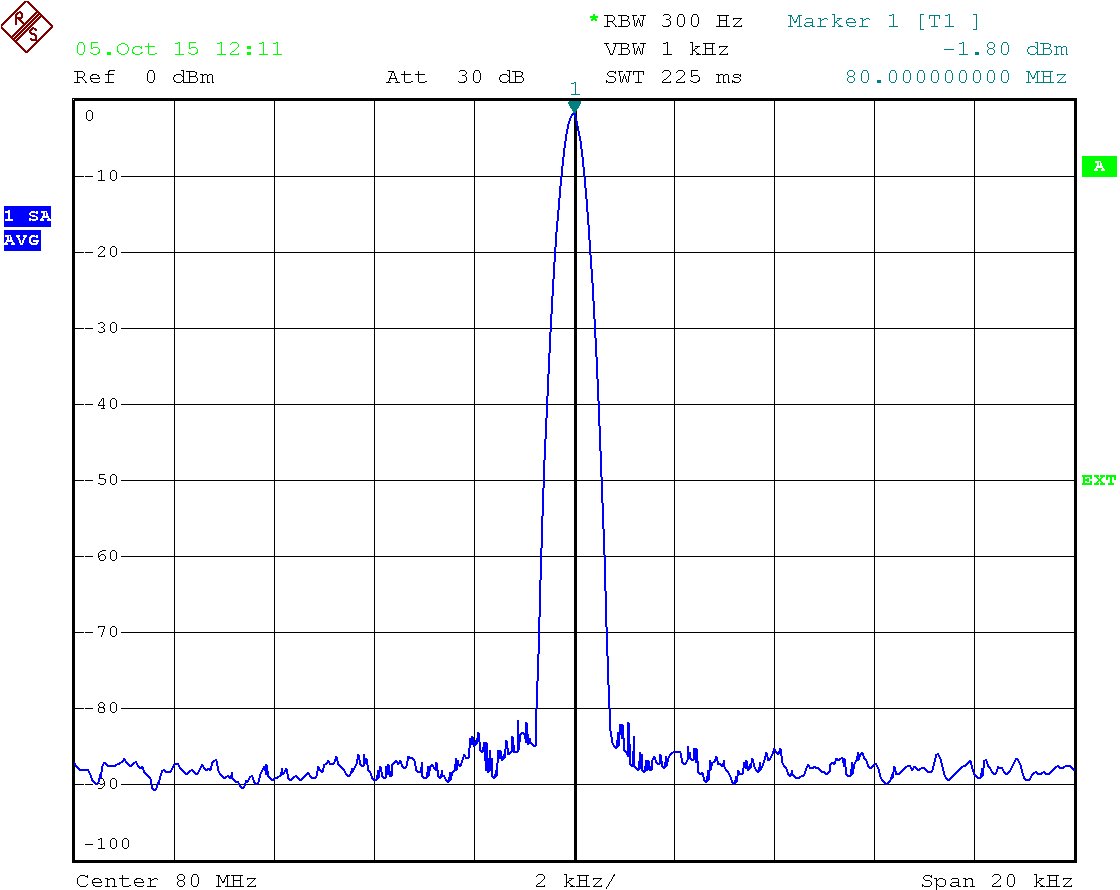

Spectrum 80 MHz ( 10 MHz x 8 ), ROS-80-7119+, MC12093




Spectrum

C17=680pF, R13=1k1, C20=4.7nF, R11=110, C14=2.2nF, IC1 not used.

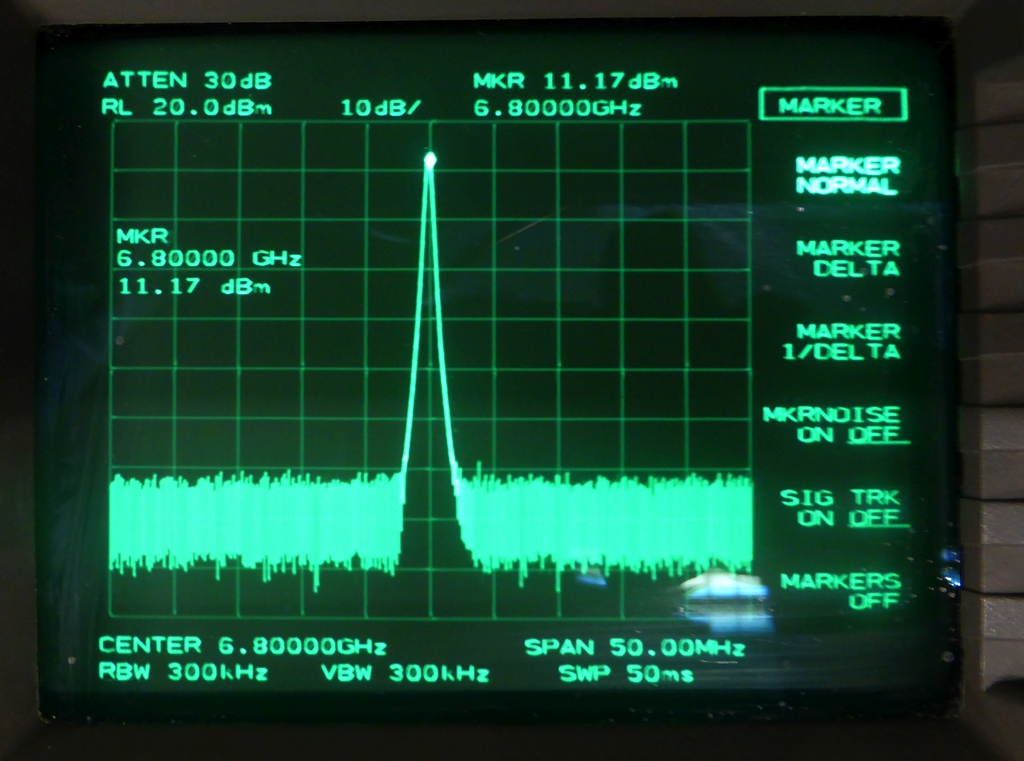

Spectrum 6.80 GHz ( 10.625 MHz x 640 ),
ROS-6840C, HMC363, MC12080




Spectrum

C17=680pF, R13=2k2, C20=3.9nF, R11=1kΩ, C14=680pF, HMC363: dead bug technology.




Notes




• If there is no output of the prescaler, add a resistor of approx 2.2 kΩ from the output to gnd.
