I-Q-LO-Generator-V2.php    5803 Bytes    27-06-2024 16:44:05


A budget Phase-Shifter for IQ Mixing Applications


Version 2 uses 74LVC circuits with a matched propagation delay






The assembled prototype




✈ The Design




The Design uses 74LVC circuits. They are not that fast as ECL logic, but 50 MHz should be possible. Here we make use of the fact, that a phase shift of 180 degress (you mayst call that inverter) at a frequency f0 equals a phase shift of 90 degres at f0/2. We therefore use two D-type Flip Flops to half the frequency. And the clock of one of these is inverted.

We carefully selected an inverter as well as a buffer with the same propagation delay of typically 2.0 ns @ a supply voltage of 3.3 V (from NXP). Using similiar devices from other manufacturer may ruin your day.

The word "budget" applies for power consumption as well as for price.




✈ Downloads




Printed Circuit Board




✈ Performance

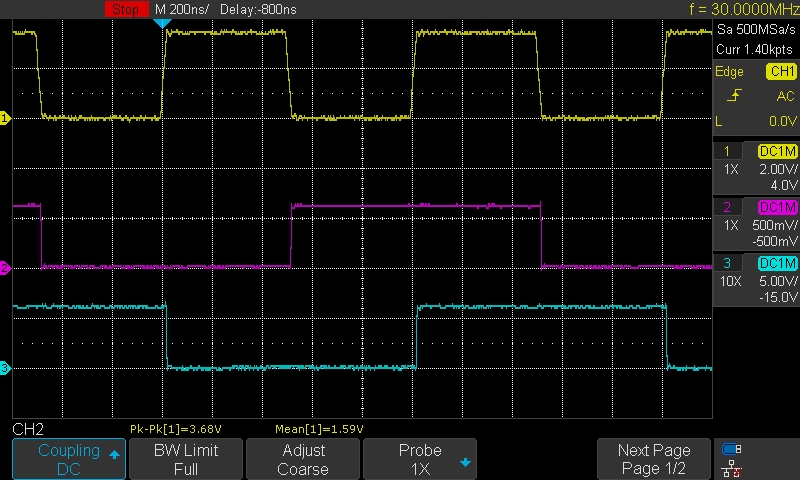

Input is 30 MHz TTL (DS345). Output is 15 MHz

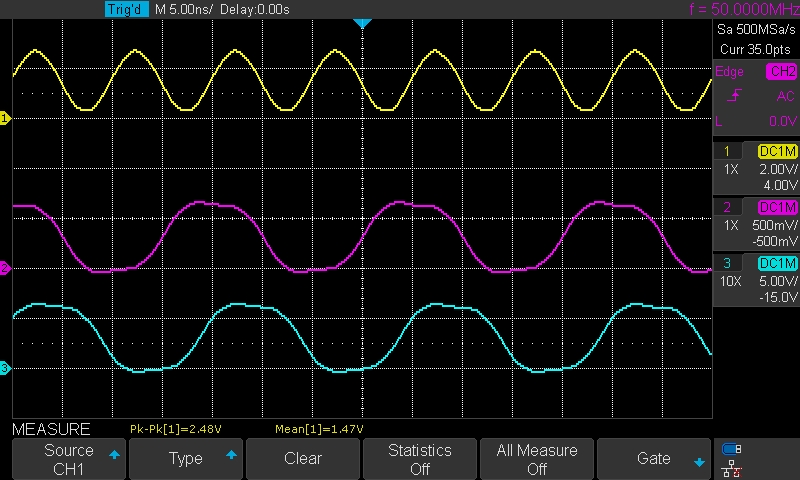

Input is 100 MHz (SMC100A) with Bias-T. Output is 50 MHz. Scope-BW is 100 MHz :-(


For mixing applications, a lowpass is not always necessary. Some mixers perform best, when using a square wave local oscillator.
