เราจะทำแบบวิศวกรผู้ยิ่งใหญ่
7. July 2026
YOUR OPINION •••
average: 7.533, n: 15
When using this form, your ip is stored in order to avoid multiple voting on the same website. That's it.
When using this form, your ip is stored in order to avoid multiple voting on the same website. That's it.
Active_Notch_Filter.php 12412 Bytes 04-03-2025 19:09:14
Active Twin - T - Notch Filter Calculator
• Suiteable to attenuate a 50 Hz ( 60 Hz ) noise
• Select parts with low tolerance / equal value !
• Design of this calculator was inspired by : Ferdl
• Maybe helpful : FIND PARALLEL RESITORS
With passive networks, the Q is fixed to 0.25 - introducing a variable Feedback 'k' allows the Q to be adjusted. Changing the Q will also change the notch-depth. For numerical reasons, we limited the range of k : 1 < k < 99 [%].
• Select parts with low tolerance / equal value !
• Design of this calculator was inspired by : Ferdl
• Maybe helpful : FIND PARALLEL RESITORS
With passive networks, the Q is fixed to 0.25 - introducing a variable Feedback 'k' allows the Q to be adjusted. Changing the Q will also change the notch-depth. For numerical reasons, we limited the range of k : 1 < k < 99 [%].
Simulations :
Simulations were done using TARGET 3001. Center Frequency : 50 Hz
NOTE: Even the Simulations suggest Attenuations of 100 dB and more, real - life values are in the range of 40 ... 60 dB !
Parts used in Simulation :
R1 = R2 = 318.3 kΩ
R3 = 159.2 kΩ
C1 = C2 = 10 nF
C3 = 20 nF
R4, R5 : various values
OPAMP: LM358
Active_Notch_Filter_2.T3001
NOTE: Even the Simulations suggest Attenuations of 100 dB and more, real - life values are in the range of 40 ... 60 dB !
Parts used in Simulation :
R1 = R2 = 318.3 kΩ
R3 = 159.2 kΩ
C1 = C2 = 10 nF
C3 = 20 nF
R4, R5 : various values
OPAMP: LM358
Active_Notch_Filter_2.T3001
 |

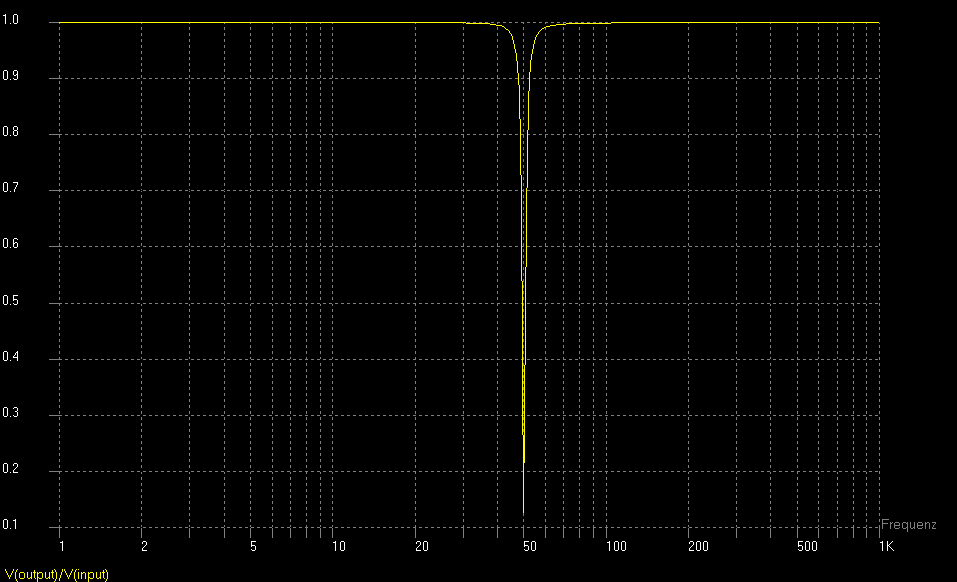

k = 99 %
R4 = 1 kΩ R5 = 99 kΩ B = 2 Hz Depth : 78.2 dB 122.9 mV |
|
 |
k = 90 %
R4 = 10 kΩ R5 = 90 kΩ B = 20 Hz Depth : 97.2 dB 13.8 mV |
|
 |
k = 80 %
R4 = 20 kΩ R5 = 80 kΩ B = 40 Hz Depth : 103 dB 7.16 mV |
|
 |

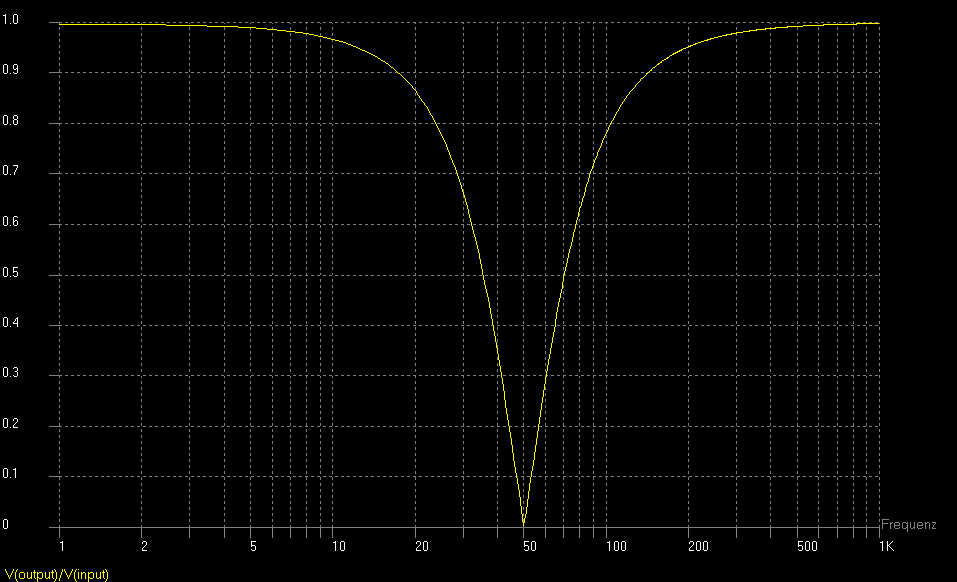

k = 70 %
R4 = 30 kΩ R5 = 70 kΩ B = 60 Hz Depth : 106 dB 4.79 mV |
|
 |

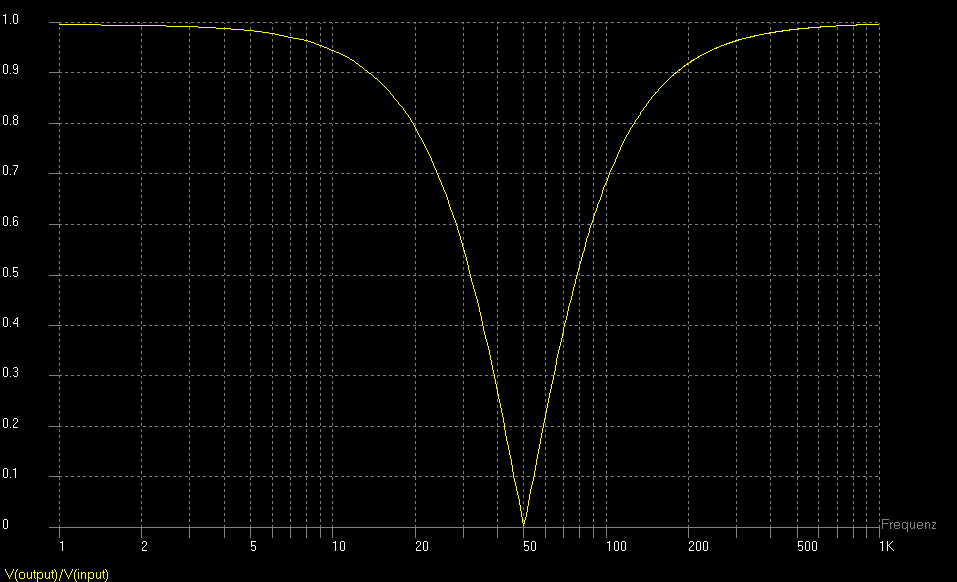

k = 60 %
R4 = 40 kΩ R5 = 60 kΩ B = 80 Hz Depth : 109 dB 3.58 mV |
