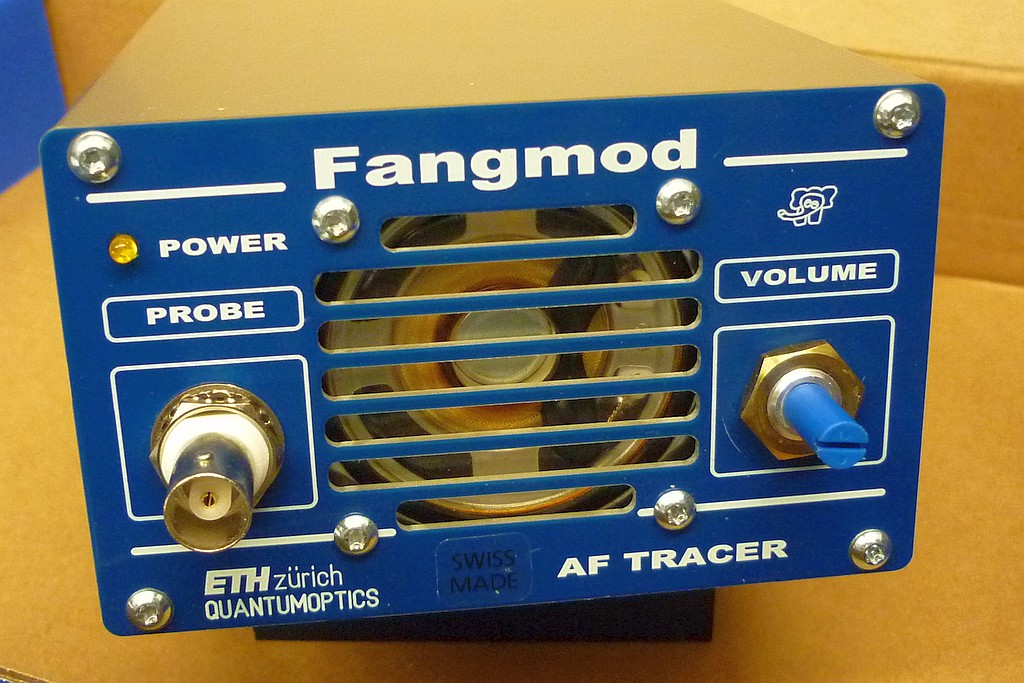

This is a small Audio Amplifier with an AC coupled Instrumentation Amplifier at the Input to allow for troubleshooting audio circuits by helping to find, where a signal disappears or becomes distorted. It works by allowing a technician to inject a test signal and then follow it through each stage of the circuit, listening for where the sound cuts out. This helps isolate faults in multi-stage audio systems like amplifiers, preamps, and crossovers.

The high dynamic range of the human ear (> 100 dB) and the fact, that you don't have to turn your head towards a scope makes this a handy tool, when troubleshooting Audio or Low Frequency Applications.

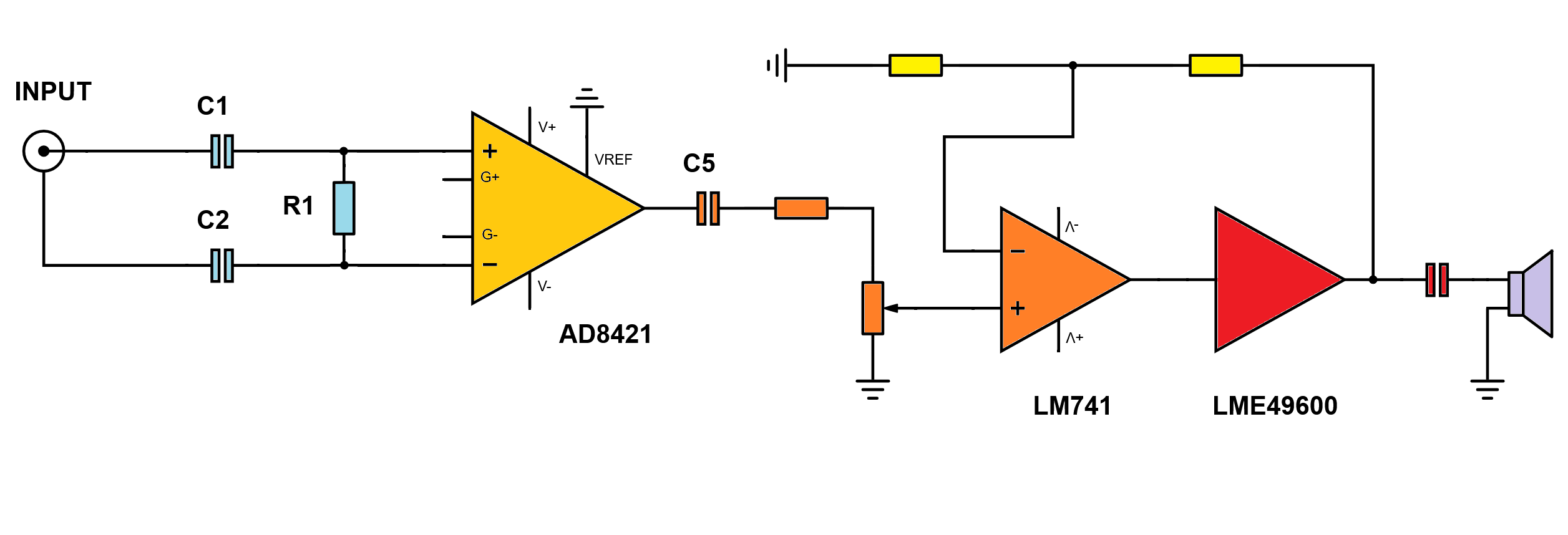

The design is completely straightforward. An instrumentation amplifier at the input (AD8421) allows for a different GND connection. In order to compensate for probe attenuation, a resistor R2 mayst be assembled. The gain resistor can be calculated as R2 = 9.9 kΩ/(Gain - 1). This amplifier shall survive (Absolute Maximum Ratings) input voltages of 60 Vpp (not tested :-)

As the REF pin is held at GND, the output is symmetrical with respect to gnd. It is ac coupled to a voltage divider consisting of a fixed resistor (tbd) and a potentiometer, which's tap is connected to the input of a LM741. A power amplifier LME49600 (alternative BUF634F) drives a loudspeaker. Together with the LM741 it offers 20 dB of gain.

The circuit is powered by a RAC20-12DK, Bipolar Supply, ±12 V, by Recom.

The Photomodel is from Tektronix, but any other will work as well ...

The Device is best operated with any standard Scope 1:1 or 1:10 probe, as the instrumentation Amplifier at the input presents an input impedance of 1 MΩ. Absolutely no need to reinvent the wheel. As we are dealing with a spectrum up to 20 kHz, the compensation of the probe may be neglected. If you constantly use a 1:10 probe, a resistor of 1.1 kΩ my be installed at position R2. This will set the Gain of the AD8421 to Vu = 10, or 20 dB.

Of course, any tube video can be used as a signal source. Professionals use sinewaves with defined frequencies, such as 440 Hz or 1000 Hz. Those are usually generated by a Synthesiser like the FG2206, AD9833 Micro Waveform Generator or similiar.

The python script below let's you create wav-files with a sinewave of the frequency and amplitude of your choice. HAVE FUN !

ITEM	SUPPLIER
Loudspeaker	Pui Audio, AS05008MS-R from Farnell
Case	2 x KOH 04 A 160 ME, from fischer elektronik
Maybe useful	this website
